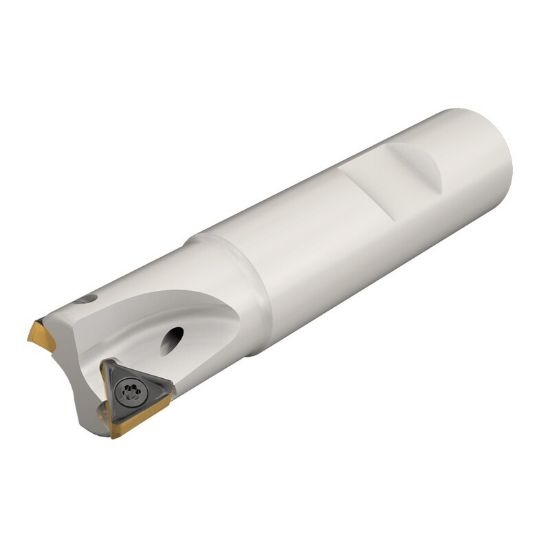

Picture of ISCAR H690 E90AX D1.50-6W1.0-10 Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 6 Flute

ISCAR H690 E90AX D1.50-6W1.0-10 Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 6 Flute

ANSI: H690 E90AX D1.50-6W1.0-10

ISO: H690 E90AX D1.50-6W1.0-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107263
Delivery date: 3-5 days
$564.48

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.3100
Overall Len 4.0000 101.60MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 10
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Cool Sply Type External
Coolant Thru No
Max Ramp Angle 1.30°
Fasteners & Connectors
Insert Screw 7005890
