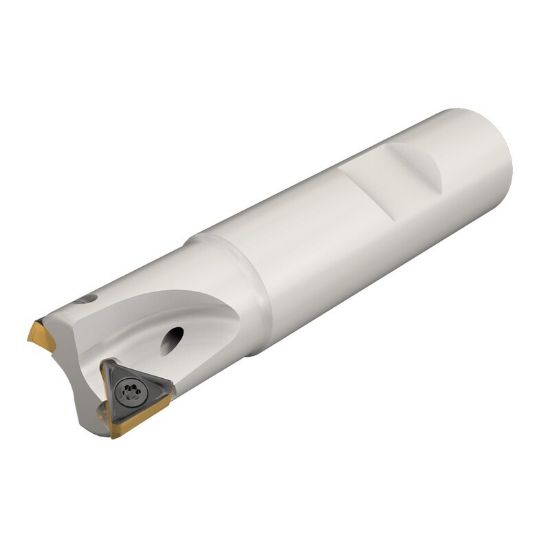

Picture of ISCAR H690 E90AX D1.0-4-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 4 Flute

ISCAR H690 E90AX D1.0-4-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 4 Flute

ANSI: H690 E90AX D1.0-4-W.75-10

ISO: H690 E90AX D1.0-4-W.75-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181258
Delivery date: 3-5 days
$437.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Application Face Milling, Side Milling
Shipping State Texas
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 10
Overall Len 3.3800 85.85MM
Cut Dia Max 1.0000 25.40MM
Depth Of Cut Max 0.3100
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 2.60°
Insert Style TN
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7005890
