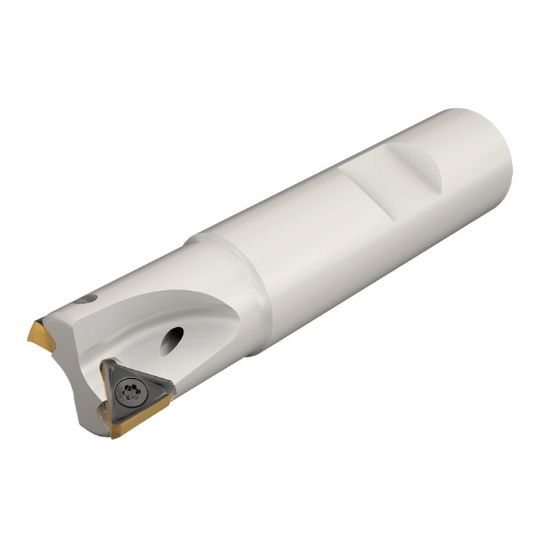

Picture of ISCAR H690 E90AX D1.0-3-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 3 Flute

ISCAR H690 E90AX D1.0-3-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 3 Flute

ANSI: H690 E90AX D1.0-3-W.75-10

ISO: H690 E90AX D1.0-3-W.75-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181001
Delivery date: 3-5 days
$408.96

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 10
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3100
Cutter Dia 1.0000 25.40MM
Cut Dia Max 1.0000 25.40MM
Overall Len 3.3800 85.85MM
Cutting & Machining Properties
Insert Style TN
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 2.60°
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000219
