  • ISCAR H606 FR D3.00-08-1.00-12 Milling Cutter Button Cutter 3.000 Diameter Face Mill 1.000 2.000 OAL 8 Flute

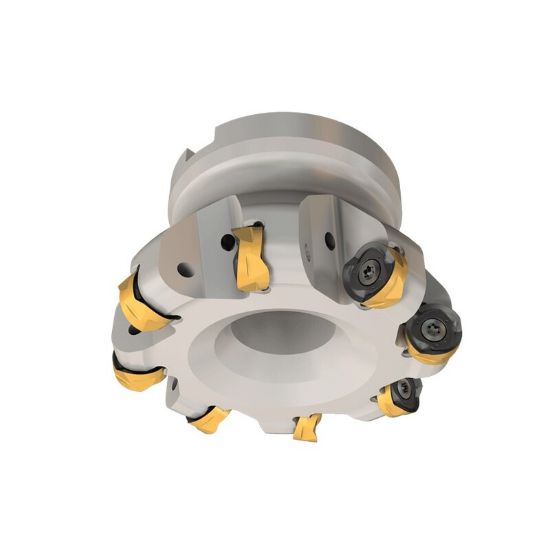

Picture of ISCAR H606 FR D3.00-08-1.00-12 Milling Cutter Button Cutter 3.000 Diameter Face Mill 1.000 2.000 OAL 8 Flute

ISCAR H606 FR D3.00-08-1.00-12 Milling Cutter Button Cutter 3.000 Diameter Face Mill 1.000 2.000 OAL 8 Flute

ANSI: H606 FR D3.00-08-1.00-12

ISO: H606 FR D3.00-08-1.00-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106382
Delivery date: 3-5 days
$893.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Ramp Milling, Face Milling, Round Milling
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.0000 76.20MM
Depth Of Cut Max 0.3940
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 8
Insert Size Ic 12
Cut Dia Min 2.5280 64.21MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Insert Style RX
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7006264
