  • ISCAR H606 FR D2.00-06-0.75-.50 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 2.000 OAL 6 Flute

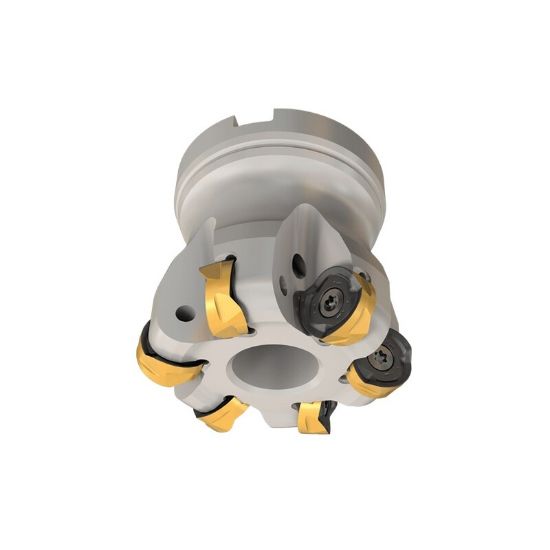

Picture of ISCAR H606 FR D2.00-06-0.75-.50 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 2.000 OAL 6 Flute

ISCAR H606 FR D2.00-06-0.75-.50 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 2.000 OAL 6 Flute

ANSI: H606 FR D2.00-06-0.75-.50

ISO: H606 FR D2.00-06-0.75-.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106609
Delivery date: 3-5 days
$628.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Type Negative
Dimensional Specifications
Insert Size Ic 43
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 2.0000 50.80MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.2500
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RX
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7001973
