  • ISCAR H606 FR D2.00-06-0.75-12 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 2.000 OAL 6 Flute

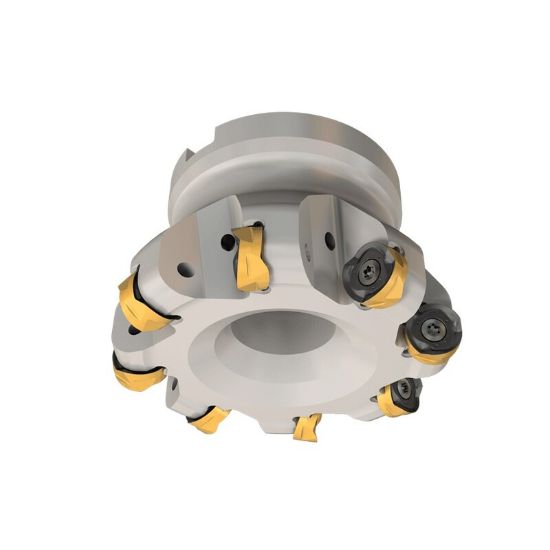

Picture of ISCAR H606 FR D2.00-06-0.75-12 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 2.000 OAL 6 Flute

ISCAR H606 FR D2.00-06-0.75-12 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 2.000 OAL 6 Flute

ANSI: H606 FR D2.00-06-0.75-12

ISO: H606 FR D2.00-06-0.75-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106380
Delivery date: 3-5 days
$628.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Face Milling, Round Milling, Pocket Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.2360
Cut Dia Min 1.5280 38.81MM
Tool Material Steel
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Cutting & Machining Properties
Insert Style RX
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7001973
