  • ISCAR H606 ER D032-03-M16-12 Milling Cutter Button Cutter 0.787 Diameter Screw On M16 2.362 OAL 3 Flute

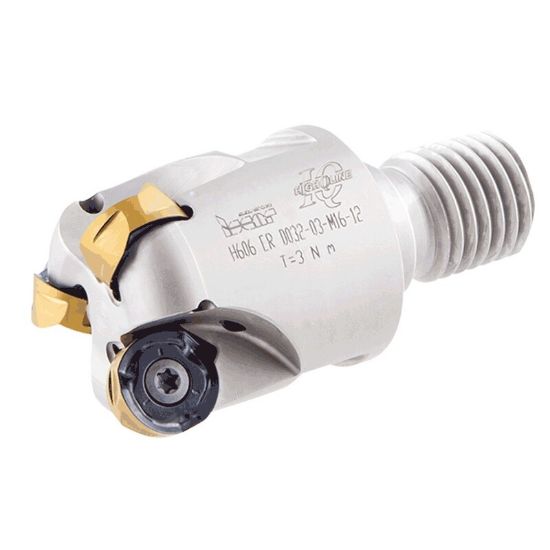

Picture of ISCAR H606 ER D032-03-M16-12 Milling Cutter Button Cutter 0.787 Diameter Screw On M16 2.362 OAL 3 Flute

ISCAR H606 ER D032-03-M16-12 Milling Cutter Button Cutter 0.787 Diameter Screw On M16 2.362 OAL 3 Flute

ANSI: H606 ER D032-03-M16-12

ISO: H606 ER D032-03-M16-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3138539
Delivery date: 3-5 days
$422.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Application Face Milling, Ramp Milling, Pocket Milling, Round Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2360
Cut Dia Max 1.2600 32.00MM
Overall Len 2.3620 59.99MM
Machine Side Connection Size M16
Tool Material Steel
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Type Screw On
Flutes/Inserts 3
Insert Size Ic 12
Cutter Dia 0.7870 19.99MM
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 2.50°
Insert Style RX
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7001973
