  • ISCAR H490 SMD4.0-2.5-5-1.50-17 Milling Cutter 90.0°, Corn Cob 4.000 Diameter Face Mill 1.500 3.350 OAL 20 Flute

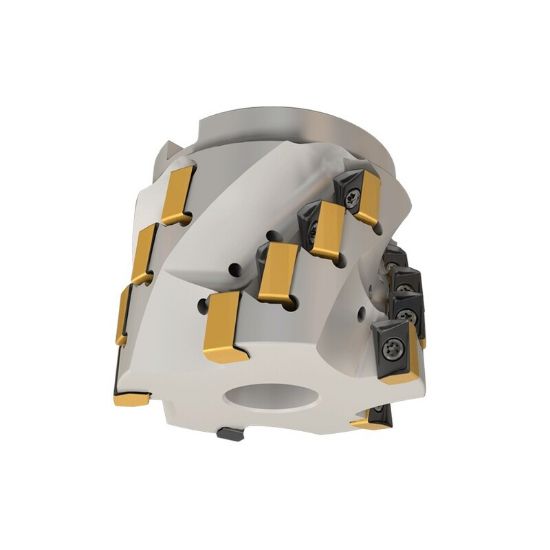

Picture of ISCAR H490 SMD4.0-2.5-5-1.50-17 Milling Cutter 90.0°, Corn Cob 4.000 Diameter Face Mill 1.500 3.350 OAL 20 Flute

ISCAR H490 SMD4.0-2.5-5-1.50-17 Milling Cutter 90.0°, Corn Cob 4.000 Diameter Face Mill 1.500 3.350 OAL 20 Flute

ANSI: H490 SMD4.0-2.5-5-1.50-17

ISO: H490 SMD4.0-2.5-5-1.50-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105519
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing
Made In USA No
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.0390
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 17
Cut Dia Min 4.0000 101.60MM
Flutes/Inserts 20
Cutter Dia 4.0000 101.60MM
Tool Material Steel
Overall Len 3.3500 85.09MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Fasteners & Connectors
Insert Screw 7006042
