  • ISCAR H490 SMD2.5-1.9-3-1.00-17 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 2.362 2.760 OAL 9 Flute

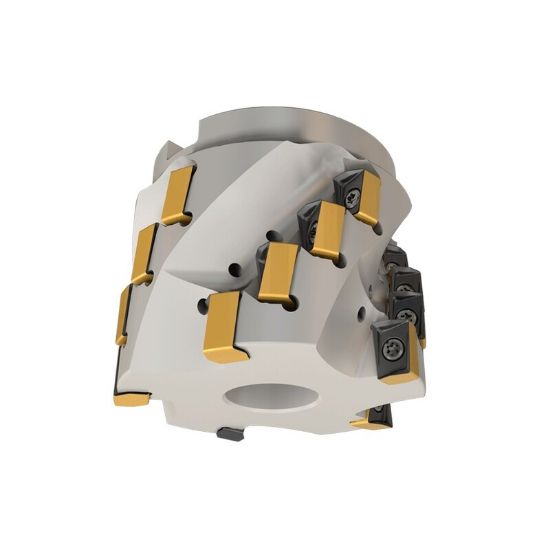

Picture of ISCAR H490 SMD2.5-1.9-3-1.00-17 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 2.362 2.760 OAL 9 Flute

ISCAR H490 SMD2.5-1.9-3-1.00-17 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 2.362 2.760 OAL 9 Flute

ANSI: H490 SMD2.5-1.9-3-1.00-17

ISO: H490 SMD2.5-1.9-3-1.00-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105517
Delivery date: 3-5 days
$1,027.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing
Made In USA No
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 2.3622 60.00MM
Overall Len 2.7600 70.10MM
Insert Size Ic 17
Tool Material Steel
Cut Dia Min 2.5000 63.50MM - 2-1/2
Flutes/Inserts 9
Depth Of Cut Max 1.8300
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000219
