  • ISCAR H490 SMD1.25-1.12-3-.5-09 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Face Mill 0.500 1.770 OAL 12 Flute

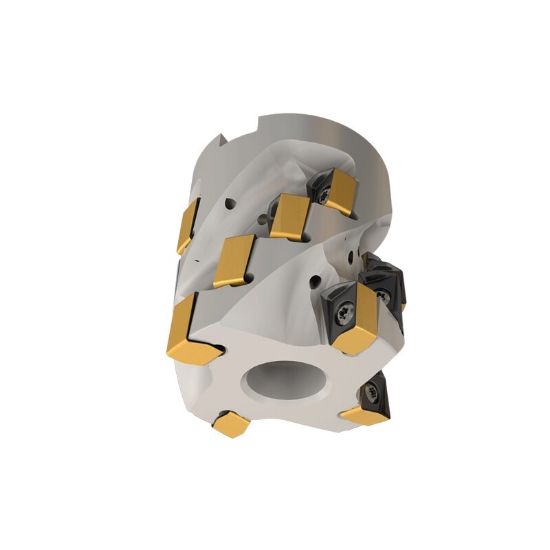

Picture of ISCAR H490 SMD1.25-1.12-3-.5-09 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Face Mill 0.500 1.770 OAL 12 Flute

ISCAR H490 SMD1.25-1.12-3-.5-09 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Face Mill 0.500 1.770 OAL 12 Flute

ANSI: H490 SMD1.25-1.12-3-.5-09

ISO: H490 SMD1.25-1.12-3-.5-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106158
Delivery date: 3-5 days
$699.84

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert Type Negative
Insert Application Roughing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 9
Depth Of Cut Max 0.2950
Machine Side Connection Size 0.5000 12.70MM
Overall Len 1.7700 44.96MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Flutes/Inserts 12
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Insert Style SM
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006042
