  • ISCAR H490 F90AX D6.00-8-2.0-17 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 8 Flute

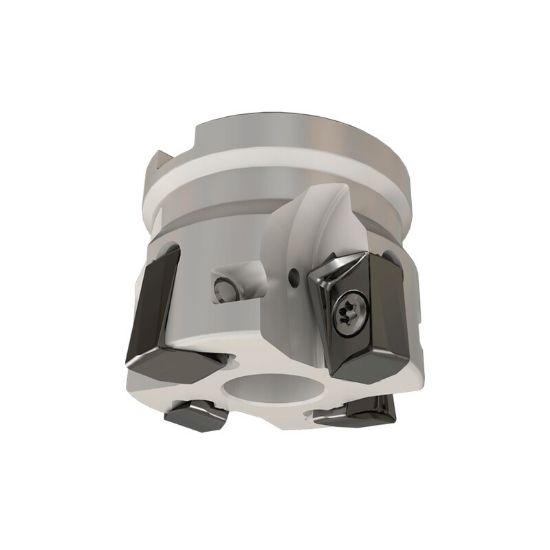

Picture of ISCAR H490 F90AX D6.00-8-2.0-17 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 8 Flute

ISCAR H490 F90AX D6.00-8-2.0-17 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 8 Flute

ANSI: H490 F90AX D6.00-8-2.0-17

ISO: H490 F90AX D6.00-8-2.0-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104629
Delivery date: 3-5 days
$1,536.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Ramp Milling, Slot Milling, Side Milling, Face Milling
Made In USA No
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Min 6.0000 152.40MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 17
Machine Side Connection Size 2.0000 50.80MM
Flutes/Inserts 8
Cutter Dia 6.0000 152.40MM
Tool Material Steel
Cut Dia Max 6.0000 152.40MM
Overall Len 2.5000 63.50MM
Depth Of Cut Max 0.6420
Cutting & Machining Properties
Coolant Thru No
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7000219
