  • ISCAR H490 F90AX D5.00-7-1.5-17 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.500 OAL 7 Flute

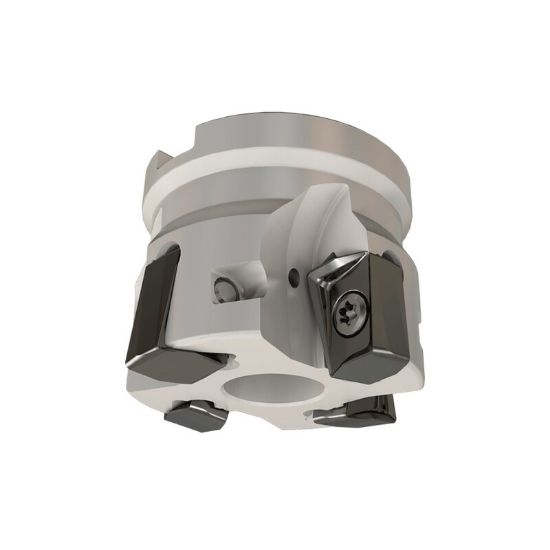

Picture of ISCAR H490 F90AX D5.00-7-1.5-17 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.500 OAL 7 Flute

ISCAR H490 F90AX D5.00-7-1.5-17 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.500 OAL 7 Flute

ANSI: H490 F90AX D5.00-7-1.5-17

ISO: H490 F90AX D5.00-7-1.5-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104627
Delivery date: 3-5 days
$1,219.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Cut Dia Max 5.0000 127.00MM
Tool Material Steel
Insert Size Ic 17
Cutter Dia 5.0000 127.00MM
Overall Len 2.5000 63.50MM
Depth Of Cut Max 0.6420
Cut Dia Min 5.0000 127.00MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000219
