  • ISCAR H490 F90AX D5.0-10-1.5-17 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.500 OAL 10 Flute

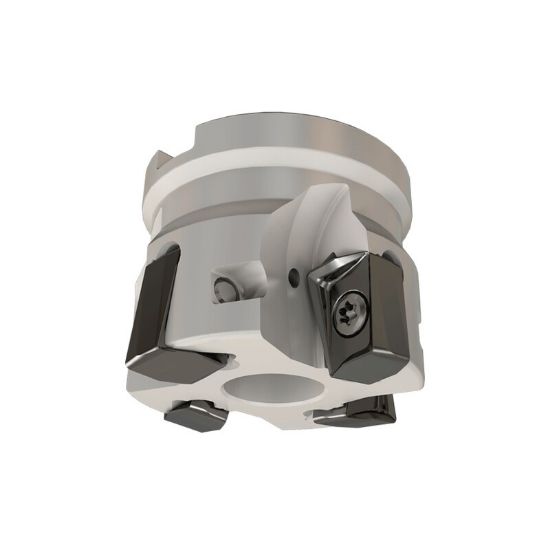

Picture of ISCAR H490 F90AX D5.0-10-1.5-17 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.500 OAL 10 Flute

ISCAR H490 F90AX D5.0-10-1.5-17 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.500 OAL 10 Flute

ANSI: H490 F90AX D5.0-10-1.5-17

ISO: H490 F90AX D5.0-10-1.5-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104628
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Dimensional Specifications
Flutes/Inserts 10
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 17
Overall Len 2.5000 63.50MM
Cut Dia Max 5.0000 127.00MM
Tool Material Steel
Depth Of Cut Max 0.6420
Cut Dia Min 5.0000 127.00MM
Cutting & Machining Properties
Insert Style AX
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7000219
