  • ISCAR H490 F90AX D3.00-7-1.0-17 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

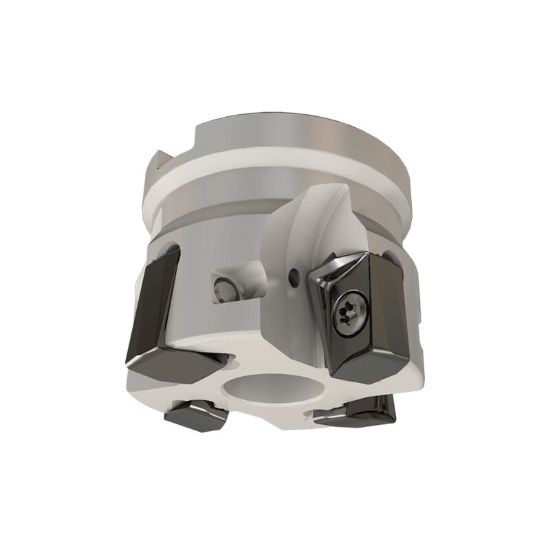

Picture of ISCAR H490 F90AX D3.00-7-1.0-17 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

ISCAR H490 F90AX D3.00-7-1.0-17 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

ANSI: H490 F90AX D3.00-7-1.0-17

ISO: H490 F90AX D3.00-7-1.0-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104624
Delivery date: 3-5 days
$890.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert Type Negative
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 17
Cutter Dia 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 3.0000 76.20MM
Depth Of Cut Max 0.6420
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Flutes/Inserts 7
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AX
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000219
