  • ISCAR H490 F90AX D3.00-7-1.0-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

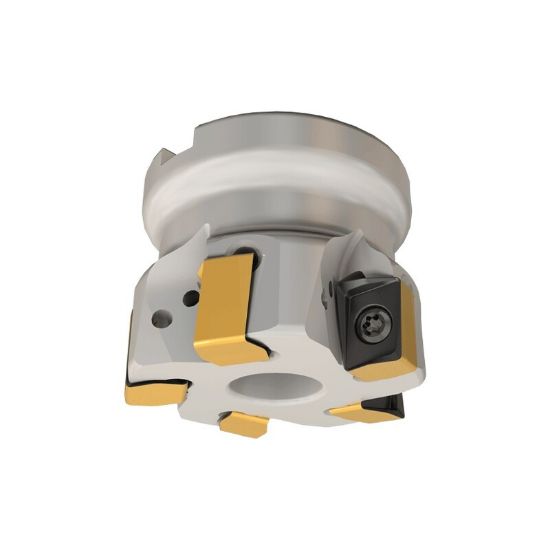

Picture of ISCAR H490 F90AX D3.00-7-1.0-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

ISCAR H490 F90AX D3.00-7-1.0-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

ANSI: H490 F90AX D3.00-7-1.0-12

ISO: H490 F90AX D3.00-7-1.0-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104780
Delivery date: 3-5 days
$854.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.4720
Cut Dia Max 3.0000 76.20MM
Cutter Dia 3.0000 76.20MM
Flutes/Inserts 7
Insert Size Ic 12
Tool Material Steel
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AX
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000219
