  • ISCAR H490 F90AX D3.00-5-1.0-17 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 5 Flute

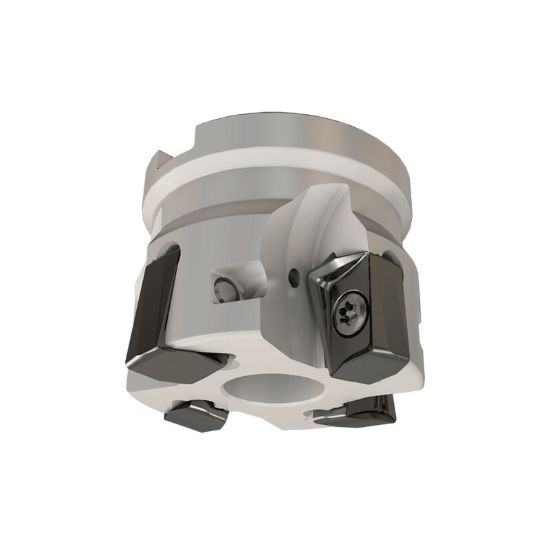

Picture of ISCAR H490 F90AX D3.00-5-1.0-17 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 5 Flute

ISCAR H490 F90AX D3.00-5-1.0-17 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 5 Flute

ANSI: H490 F90AX D3.00-5-1.0-17

ISO: H490 F90AX D3.00-5-1.0-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104623
Delivery date: 3-5 days
$836.16

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 3.0000 76.20MM
Flutes/Inserts 5
Insert Size Ic 17
Cutter Dia 3.0000 76.20MM
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.6420
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7000219
