  • ISCAR H490 F90AX D3.00-5-1.0-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 5 Flute

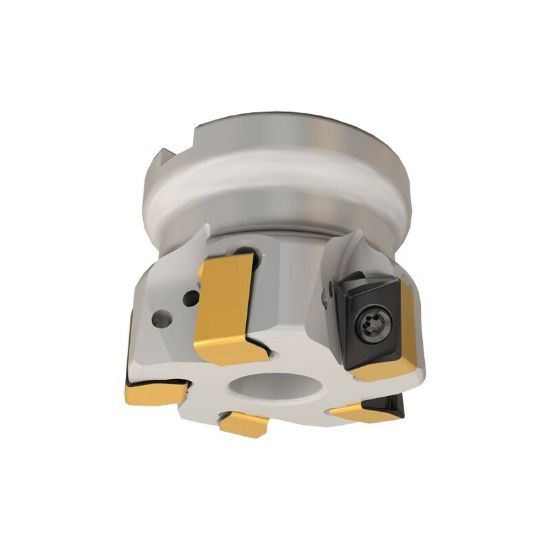

Picture of ISCAR H490 F90AX D3.00-5-1.0-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 5 Flute

ISCAR H490 F90AX D3.00-5-1.0-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 5 Flute

ANSI: H490 F90AX D3.00-5-1.0-12

ISO: H490 F90AX D3.00-5-1.0-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104779
Delivery date: 3-5 days
$800.64

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Insert Type Negative
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.4720
Flutes/Inserts 5
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.0000 76.20MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style AX
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000402
