  • ISCAR H490 F90AX D2.50-9-1.0-09 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

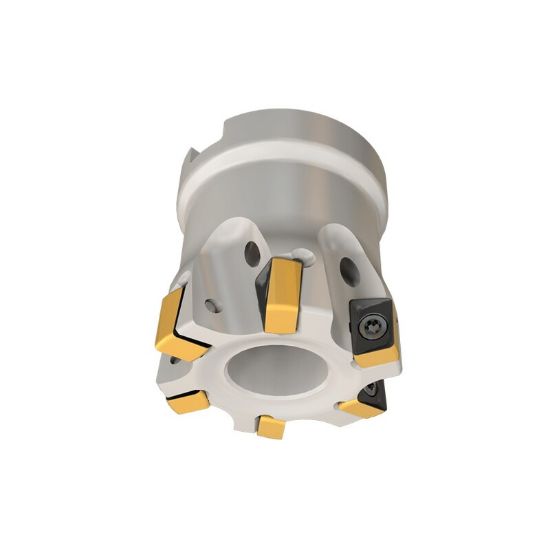

Picture of ISCAR H490 F90AX D2.50-9-1.0-09 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

ISCAR H490 F90AX D2.50-9-1.0-09 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

ANSI: H490 F90AX D2.50-9-1.0-09

ISO: H490 F90AX D2.50-9-1.0-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105281
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Negative
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.3150
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.7500 44.45MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 9
Insert Size Ic 9
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Fasteners & Connectors
Insert Screw 7005883
