  • ISCAR H490 F90AX D2.50-6-1.0-17 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

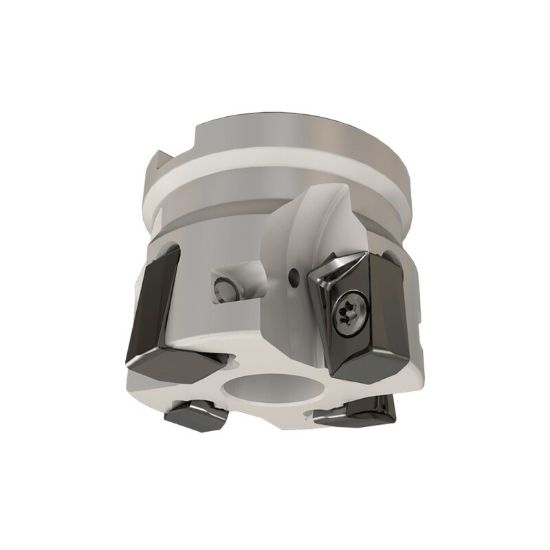

Picture of ISCAR H490 F90AX D2.50-6-1.0-17 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ISCAR H490 F90AX D2.50-6-1.0-17 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ANSI: H490 F90AX D2.50-6-1.0-17

ISO: H490 F90AX D2.50-6-1.0-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104622
Delivery date: 3-5 days
$693.12

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.6420
Flutes/Inserts 6
Overall Len 1.7500 44.45MM
Insert Size Ic 17
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AX
Fasteners & Connectors
Insert Screw 7000219
