  • ISCAR H490 F90AX D2.50-6-1.0-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

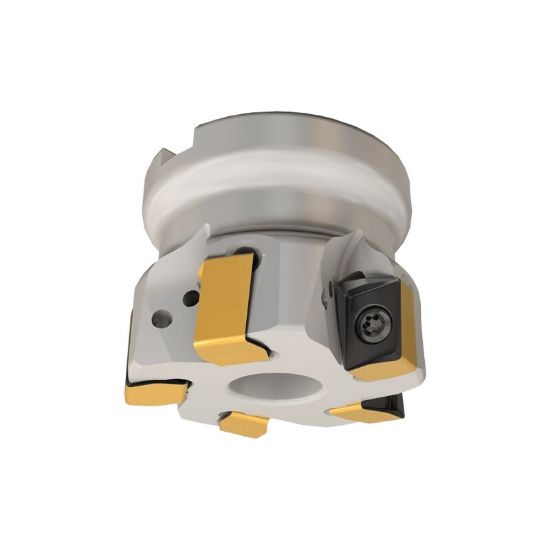

Picture of ISCAR H490 F90AX D2.50-6-1.0-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ISCAR H490 F90AX D2.50-6-1.0-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ANSI: H490 F90AX D2.50-6-1.0-12

ISO: H490 F90AX D2.50-6-1.0-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104778
Delivery date: 3-5 days
$673.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Slot Milling, Face Milling, Ramp Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Cut Dia Max 2.5000 63.50MM - 2-1/2
Tool Material Steel
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Cutter Dia 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.4720
Overall Len 1.7500 44.45MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000402
