  • ISCAR H490 F90AX D2.50-4-1.0-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

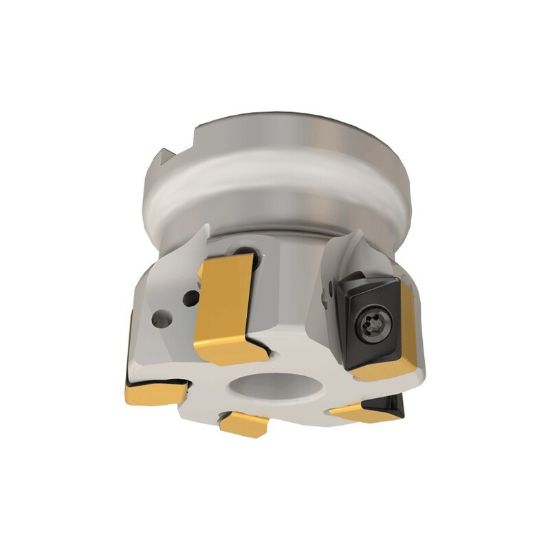

Picture of ISCAR H490 F90AX D2.50-4-1.0-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

ISCAR H490 F90AX D2.50-4-1.0-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

ANSI: H490 F90AX D2.50-4-1.0-12

ISO: H490 F90AX D2.50-4-1.0-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104777
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Overall Len 1.7500 44.45MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 12
Flutes/Inserts 4
Depth Of Cut Max 0.4720
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7000402
