  • ISCAR H490 F90AX D2.00-6-.75-09 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 6 Flute

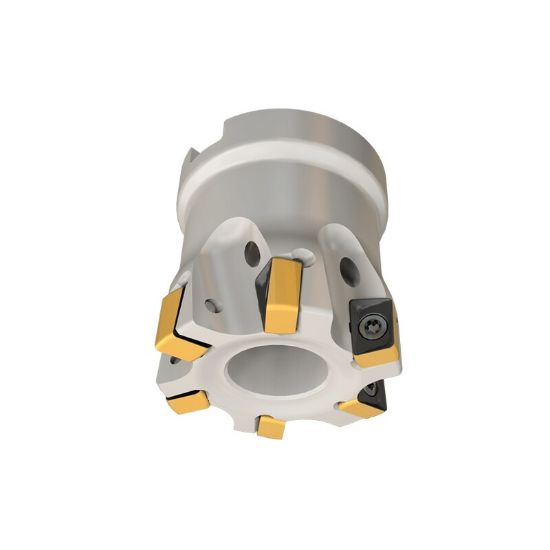

Picture of ISCAR H490 F90AX D2.00-6-.75-09 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 6 Flute

ISCAR H490 F90AX D2.00-6-.75-09 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 6 Flute

ANSI: H490 F90AX D2.00-6-.75-09

ISO: H490 F90AX D2.00-6-.75-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105899
Delivery date: 3-5 days
$581.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Insert Size Ic 9
Depth Of Cut Max 0.3150
Tool Material Steel
Overall Len 1.5700 39.88MM
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Fasteners & Connectors
Insert Screw 7005890
