  • ISCAR H490 F90AX D2.00-4-.75-17 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 4 Flute

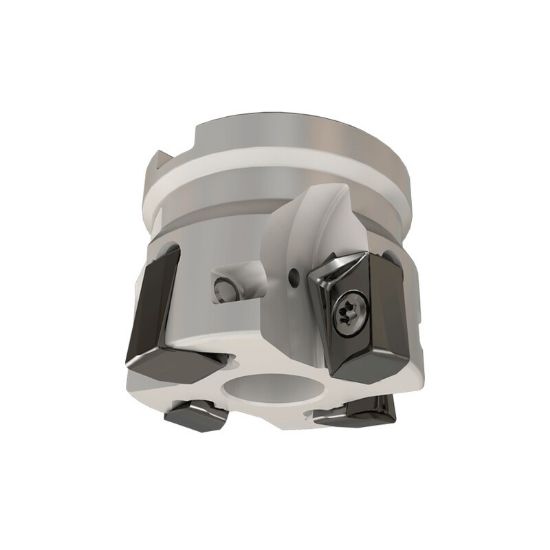

Picture of ISCAR H490 F90AX D2.00-4-.75-17 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ISCAR H490 F90AX D2.00-4-.75-17 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ANSI: H490 F90AX D2.00-4-.75-17

ISO: H490 F90AX D2.00-4-.75-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104620
Delivery date: 3-5 days
$553.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Negative
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.6420
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 17
Cutting & Machining Properties
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000219
