  • ISCAR H490 F90AX D2.00-3-.75-17 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 3 Flute

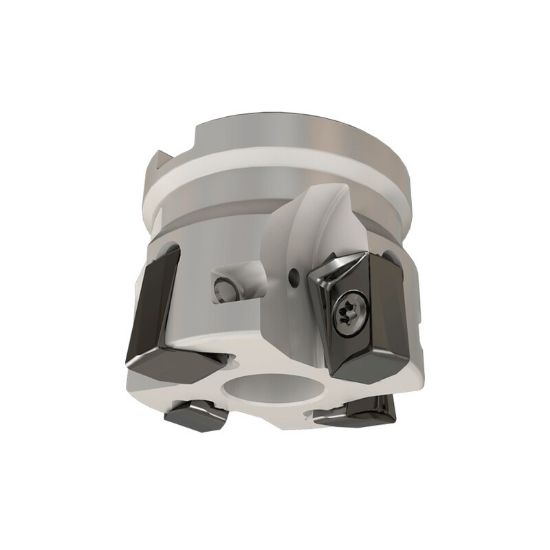

Picture of ISCAR H490 F90AX D2.00-3-.75-17 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 3 Flute

ISCAR H490 F90AX D2.00-3-.75-17 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 3 Flute

ANSI: H490 F90AX D2.00-3-.75-17

ISO: H490 F90AX D2.00-3-.75-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104619
Delivery date: 3-5 days
$522.24

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Overall Len 1.5700 39.88MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 17
Depth Of Cut Max 0.6420
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000219
