  • ISCAR H490 F90AX D1.50-6-.75-09 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 6 Flute

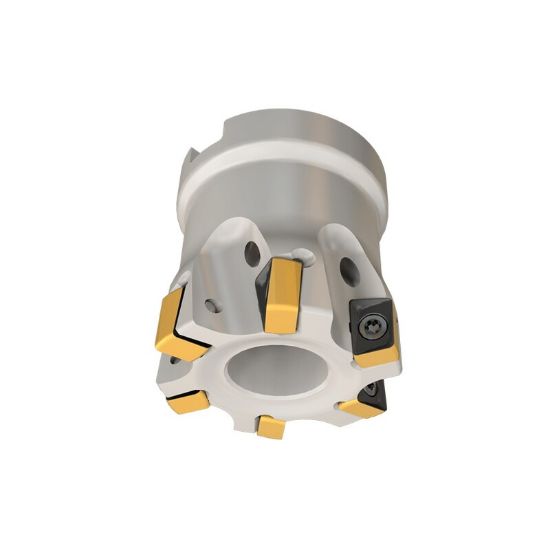

Picture of ISCAR H490 F90AX D1.50-6-.75-09 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 6 Flute

ISCAR H490 F90AX D1.50-6-.75-09 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 6 Flute

ANSI: H490 F90AX D1.50-6-.75-09

ISO: H490 F90AX D1.50-6-.75-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105279
Delivery date: 3-5 days
$532.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 6
Tool Material Steel
Overall Len 1.5700 39.88MM
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 9
Depth Of Cut Max 0.3150
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7005890
