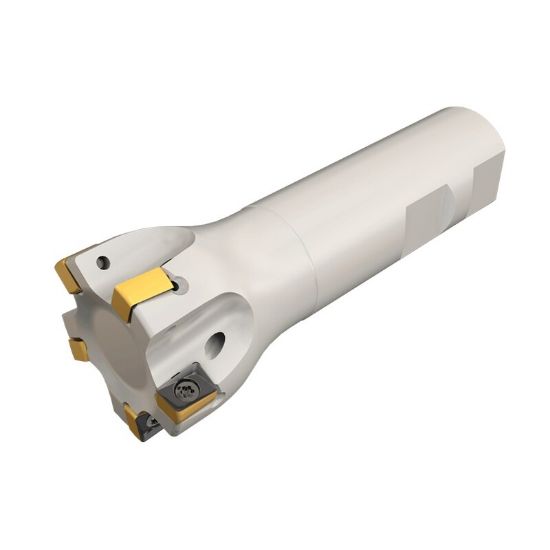

Picture of ISCAR H490 E90AXD.75-2-C.75-09B Milling Cutter 90.0° 0.750 Diameter Round 0.750 6.000 OAL 2 Flute

ISCAR H490 E90AXD.75-2-C.75-09B Milling Cutter 90.0° 0.750 Diameter Round 0.750 6.000 OAL 2 Flute

ANSI: H490 E90AXD.75-2-C.75-09B

ISO: H490 E90AXD.75-2-C.75-09B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105880
Delivery date: 3-5 days
$367.68

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Application Side Milling, Slot Milling, Face Milling
Package Size 1
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 6.0000 152.40MM
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 0.7500 19.05MM - 3/4
Insert Size Ic 9
Depth Of Cut Max 0.3150
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7005890
