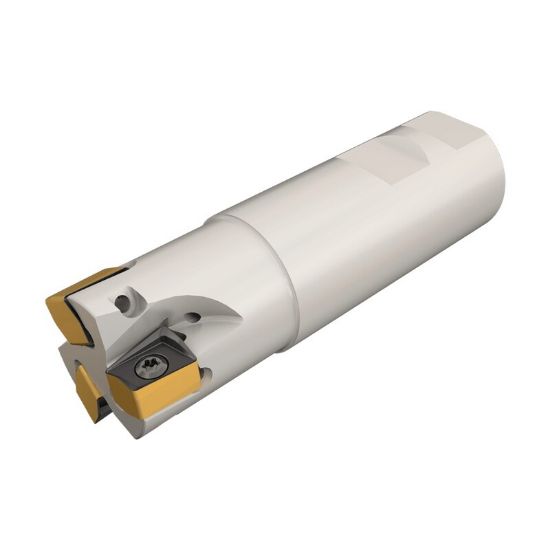

Picture of ISCAR H490 E90AXD1.00-2-W1.0-12 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 2 Flute

ISCAR H490 E90AXD1.00-2-W1.0-12 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 2 Flute

ANSI: H490 E90AXD1.00-2-W1.0-12

ISO: H490 E90AXD1.00-2-W1.0-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104764
Delivery date: 3-5 days
$387.84

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Insert Size Ic 12
Flutes/Inserts 2
Depth Of Cut Max 0.1140
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type Through Hole
Coolant Thru Yes
Max Ramp Angle 1.50°
Fasteners & Connectors
Insert Screw 7000402
