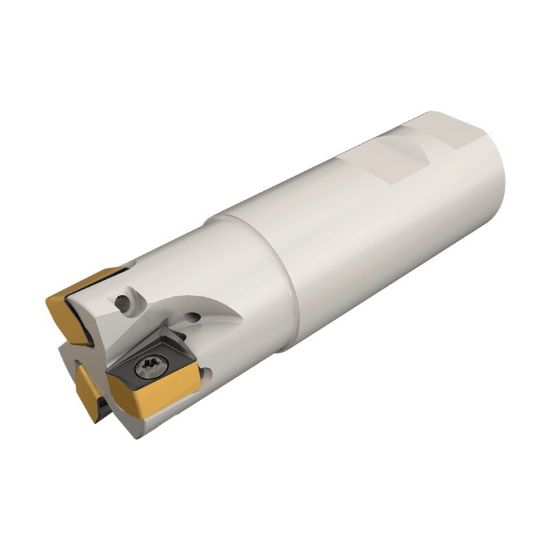

Picture of ISCAR H490 E90AXD1.00-2-C1.0-12 Milling Cutter 90.0° 1.000 Diameter Round 1.000 7.874 OAL 2 Flute

ISCAR H490 E90AXD1.00-2-C1.0-12 Milling Cutter 90.0° 1.000 Diameter Round 1.000 7.874 OAL 2 Flute

ANSI: H490 E90AXD1.00-2-C1.0-12

ISO: H490 E90AXD1.00-2-C1.0-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104765
Delivery date: 3-5 days
$387.84

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 12
Overall Len 7.8740 200.00MM
Flutes/Inserts 2
Cutter Dia 1.0000 25.40MM
Depth Of Cut Max 0.4720
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AX
Cool Sply Type Through Hole
Max Ramp Angle 1.50°
Fasteners & Connectors
Insert Screw 7000402
