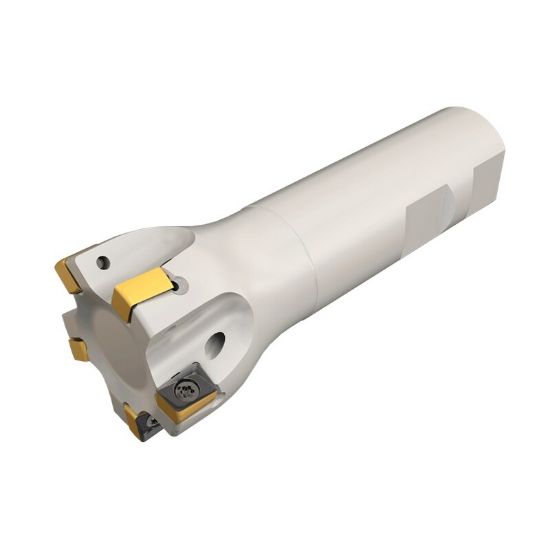

Picture of ISCAR H490 E90AX D.75-2-W.75-09 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 2 Flute

ISCAR H490 E90AX D.75-2-W.75-09 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 2 Flute

ANSI: H490 E90AX D.75-2-W.75-09

ISO: H490 E90AX D.75-2-W.75-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105890
Delivery date: 3-5 days
$348.48

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3150
Flutes/Inserts 2
Overall Len 3.3800 85.85MM
Machine Side Connection Type Weldon
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 9
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Fasteners & Connectors
Insert Screw 7005890
