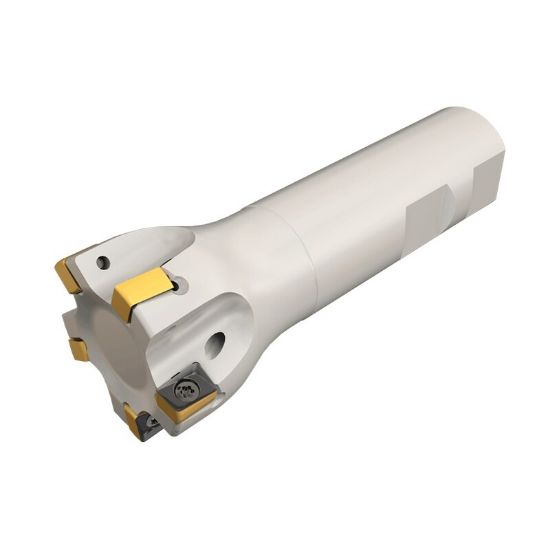

Picture of ISCAR H490 E90AX D1.50-6W1.0-09 Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 6 Flute

ISCAR H490 E90AX D1.50-6W1.0-09 Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 6 Flute

ANSI: H490 E90AX D1.50-6W1.0-09

ISO: H490 E90AX D1.50-6W1.0-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105266
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Face Milling, Slot Milling, Side Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 9
Depth Of Cut Max 0.3150
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Overall Len 4.0000 101.60MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7005890
