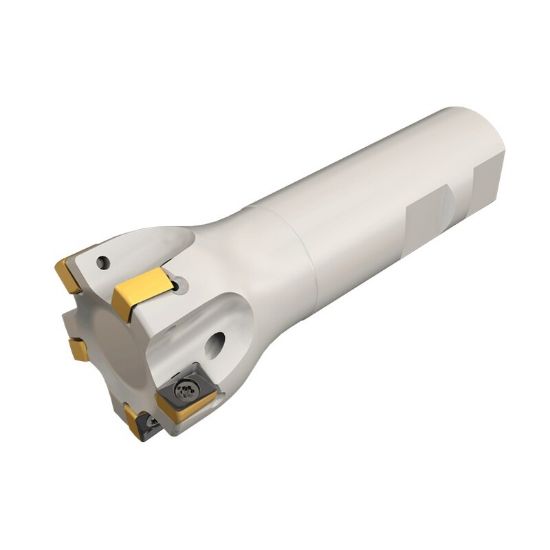

Picture of ISCAR H490 E90AX D1.50-5W1.0-09 Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 5 Flute

ISCAR H490 E90AX D1.50-5W1.0-09 Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 5 Flute

ANSI: H490 E90AX D1.50-5W1.0-09

ISO: H490 E90AX D1.50-5W1.0-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105893
Delivery date: 3-5 days
$521.28

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Shipping State Texas
Insert Type Negative
Made In USA No
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 9
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.3150
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7005890
