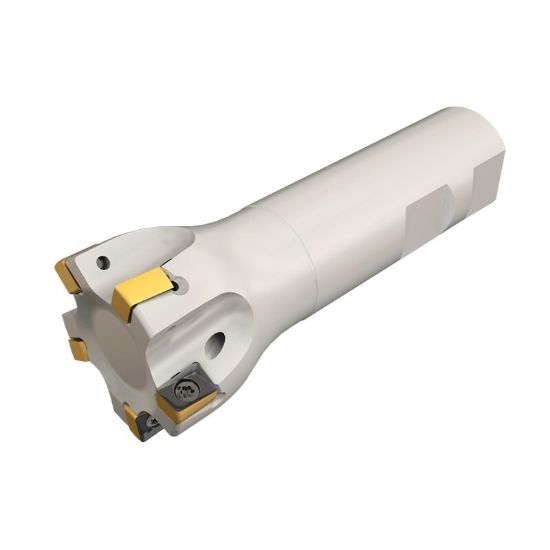

Picture of ISCAR H490 E90AX D1.0-3-W.75-09 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 3 Flute

ISCAR H490 E90AX D1.0-3-W.75-09 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 3 Flute

ANSI: H490 E90AX D1.0-3-W.75-09

ISO: H490 E90AX D1.0-3-W.75-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105891
Delivery date: 3-5 days
$400.32

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Application Side Milling, Face Milling, Slot Milling
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Weldon
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutter Dia 1.0000 25.40MM
Insert Size Ic 9
Depth Of Cut Max 0.3150
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7005890
