  • ISCAR H400 FR D4.00-09-1.50-16 Milling Cutter Button Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

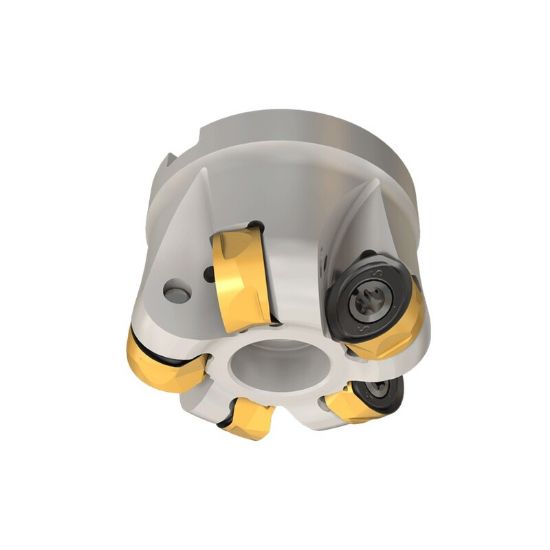

Picture of ISCAR H400 FR D4.00-09-1.50-16 Milling Cutter Button Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

ISCAR H400 FR D4.00-09-1.50-16 Milling Cutter Button Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

ANSI: H400 FR D4.00-09-1.50-16

ISO: H400 FR D4.00-09-1.50-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106167
Delivery date: 3-5 days
$1,046.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling, Pocket Milling, Ramp Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.4920
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Min 3.5280 89.61MM
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.0000 50.80MM
Insert Size Ic 16
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 9
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Insert Style RN
Fasteners & Connectors
Insert Screw 7000000
