  • ISCAR H400 FR D3.00-08-1.00-12 Milling Cutter Button Cutter 3.000 Diameter Face Mill 1.000 1.970 OAL 8 Flute

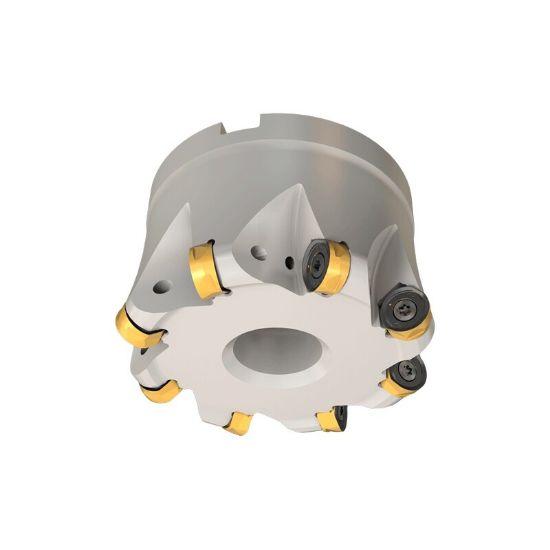

Picture of ISCAR H400 FR D3.00-08-1.00-12 Milling Cutter Button Cutter 3.000 Diameter Face Mill 1.000 1.970 OAL 8 Flute

ISCAR H400 FR D3.00-08-1.00-12 Milling Cutter Button Cutter 3.000 Diameter Face Mill 1.000 1.970 OAL 8 Flute

ANSI: H400 FR D3.00-08-1.00-12

ISO: H400 FR D3.00-08-1.00-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105956
Delivery date: 3-5 days
$893.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Overall Len 1.9700 50.04MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 8
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 1.8700
Cut Dia Min 2.7360 69.49MM
Cut Dia Max 3.0000 76.20MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Round
Insert Style RN
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4390045
