  • ISCAR H400 FR D2.50-06-1.00-16 Milling Cutter Button Cutter 2.500 Diameter Face Mill 1.000 1.650 OAL 6 Flute

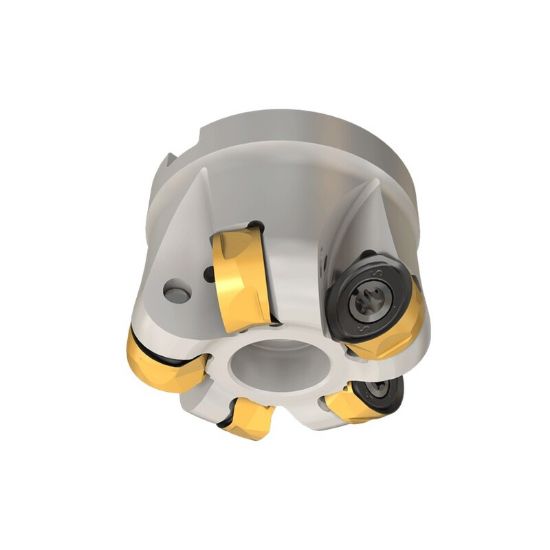

Picture of ISCAR H400 FR D2.50-06-1.00-16 Milling Cutter Button Cutter 2.500 Diameter Face Mill 1.000 1.650 OAL 6 Flute

ISCAR H400 FR D2.50-06-1.00-16 Milling Cutter Button Cutter 2.500 Diameter Face Mill 1.000 1.650 OAL 6 Flute

ANSI: H400 FR D2.50-06-1.00-16

ISO: H400 FR D2.50-06-1.00-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106165
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Pocket Milling, Face Milling
Made In USA No
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.4700
Tool Material Steel
Insert Size Ic 16
Cut Dia Min 2.0280 51.51MM
Flutes/Inserts 6
Overall Len 1.6500 41.91MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Cutting & Machining Properties
Insert Style RN
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006042
