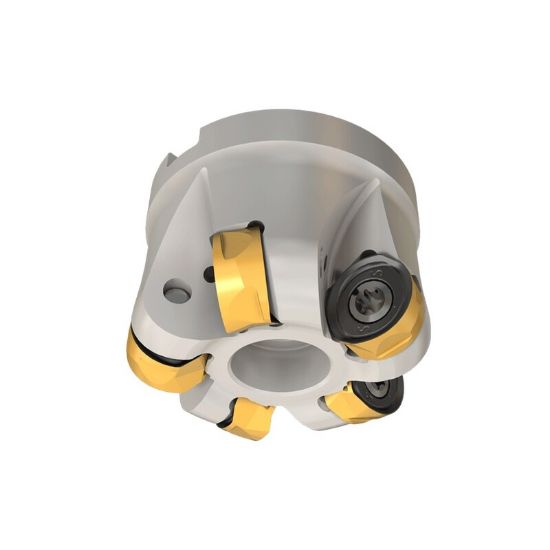

Picture of ISCAR H400 FR D2.00-05-0.75-16 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 1.500 OAL 5 Flute

ISCAR H400 FR D2.00-05-0.75-16 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 1.500 OAL 5 Flute

ANSI: H400 FR D2.00-05-0.75-16

ISO: H400 FR D2.00-05-0.75-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106164
Delivery date: 3-5 days
$583.68

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.4700
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Overall Len 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 1.5280 38.81MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7006042
