  • ISCAR H400 FR D1.50-06-0.50-10 Milling Cutter Button Cutter 1.500 Diameter Face Mill 0.500 1.400 OAL 6 Flute

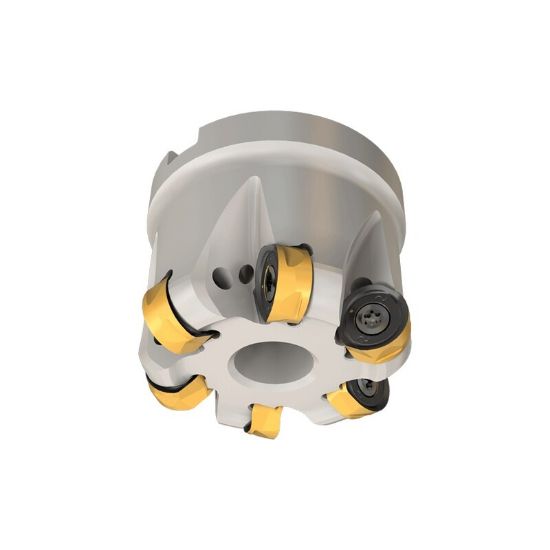

Picture of ISCAR H400 FR D1.50-06-0.50-10 Milling Cutter Button Cutter 1.500 Diameter Face Mill 0.500 1.400 OAL 6 Flute

ISCAR H400 FR D1.50-06-0.50-10 Milling Cutter Button Cutter 1.500 Diameter Face Mill 0.500 1.400 OAL 6 Flute

ANSI: H400 FR D1.50-06-0.50-10

ISO: H400 FR D1.50-06-0.50-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106163
Delivery date: 3-5 days
$588.48

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Pocket Milling, Ramp Milling, Face Milling
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Overall Len 1.4000 35.56MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 10
Tool Material Steel
Depth Of Cut Max 0.4700
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Min 1.0300 26.16MM
Cut Dia Max 1.5000 38.10MM - 1-1/2
Flutes/Inserts 6
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Insert Style RN
Fasteners & Connectors
Insert Screw 7006042
