  • ISCAR H400 FR D1.50-05-0.50-12 Milling Cutter Button Cutter 1.500 Diameter Face Mill 0.500 1.380 OAL 5 Flute

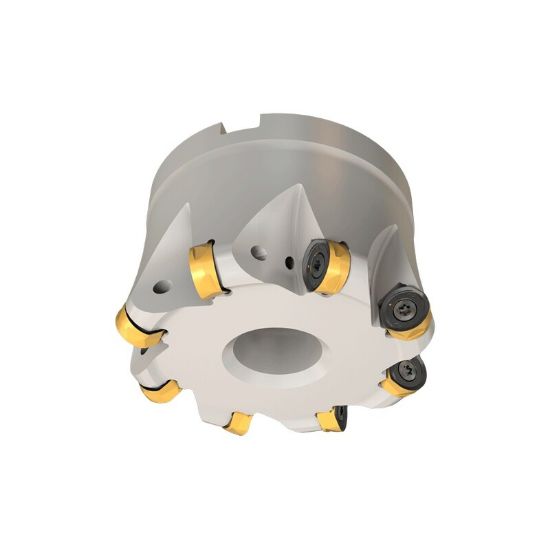

Picture of ISCAR H400 FR D1.50-05-0.50-12 Milling Cutter Button Cutter 1.500 Diameter Face Mill 0.500 1.380 OAL 5 Flute

ISCAR H400 FR D1.50-05-0.50-12 Milling Cutter Button Cutter 1.500 Diameter Face Mill 0.500 1.380 OAL 5 Flute

ANSI: H400 FR D1.50-05-0.50-12

ISO: H400 FR D1.50-05-0.50-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105953
Delivery date: 3-5 days
$552.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Insert Type Negative
Made In USA No
Shipping State Texas
Dimensional Specifications
Flutes/Inserts 5
Machine Side Connection Size 0.5000 12.70MM
Overall Len 1.3800 35.05MM
Insert Size Ic 12
Depth Of Cut Max 0.3400
Cut Dia Min 1.2640 32.11MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Style RN
Fasteners & Connectors
Insert Screw 7001973
