  • ISCAR H400 ERD1.25-5-2.5W125-10 Milling Cutter Button Cutter 1.250 Diameter Weldon 1.250 5.000 OAL 5 Flute

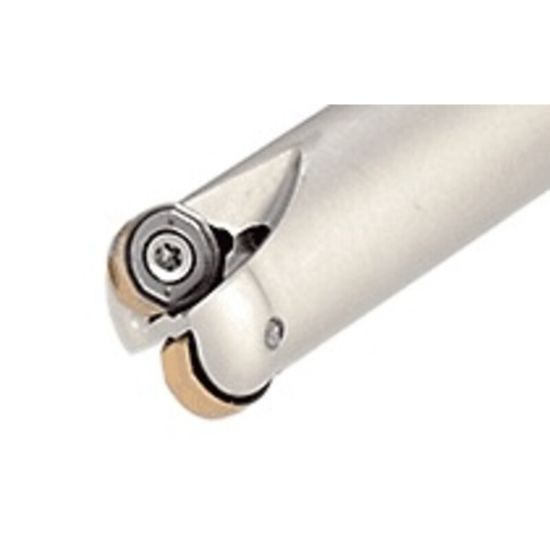

Picture of ISCAR H400 ERD1.25-5-2.5W125-10 Milling Cutter Button Cutter 1.250 Diameter Weldon 1.250 5.000 OAL 5 Flute

ISCAR H400 ERD1.25-5-2.5W125-10 Milling Cutter Button Cutter 1.250 Diameter Weldon 1.250 5.000 OAL 5 Flute

ANSI: H400 ERD1.25-5-2.5W125-10

ISO: H400 ERD1.25-5-2.5W125-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106162
Delivery date: 3-5 days
$478.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Insert Size Ic 10
Flutes/Inserts 5
Overall Len 5.0000 127.00MM
Cut Dia Max 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Cut Dia Min 0.7800 19.81MM
Machine Side Connection Type Weldon
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.2950
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 3.80°
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Round
Insert Style RN
Fasteners & Connectors
Insert Screw 7006042
