  • ISCAR H400 ERD1.25-4-2.5W125-12 Milling Cutter Button Cutter 1.250 Diameter Weldon 1.250 4.725 OAL 4 Flute

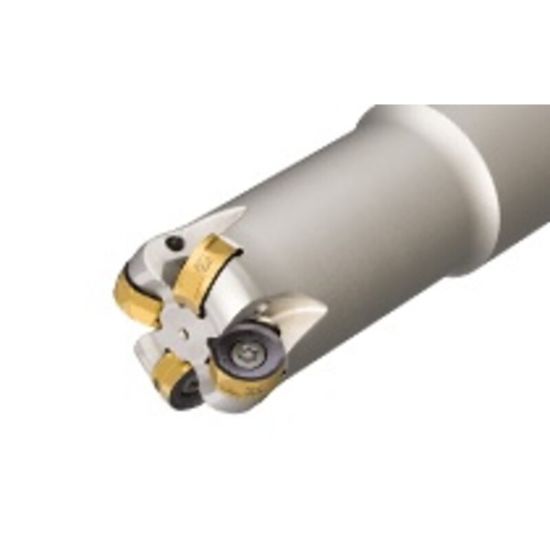

Picture of ISCAR H400 ERD1.25-4-2.5W125-12 Milling Cutter Button Cutter 1.250 Diameter Weldon 1.250 4.725 OAL 4 Flute

ISCAR H400 ERD1.25-4-2.5W125-12 Milling Cutter Button Cutter 1.250 Diameter Weldon 1.250 4.725 OAL 4 Flute

ANSI: H400 ERD1.25-4-2.5W125-12

ISO: H400 ERD1.25-4-2.5W125-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105952
Delivery date: 3-5 days
$450.24

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Pocket Milling, Round Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Cut Dia Max 1.2500 31.75MM - 1-1/4
Overall Len 4.7250 120.02MM
Depth Of Cut Max 0.3400
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 0.7770 19.74MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 12
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Max Ramp Angle 5.60°
Insert Style RN
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7001973
