  • ISCAR H400 ERD1.00-3-2.5W100-10 Milling Cutter Button Cutter 1.000 Diameter Weldon 1.000 5.000 OAL 3 Flute

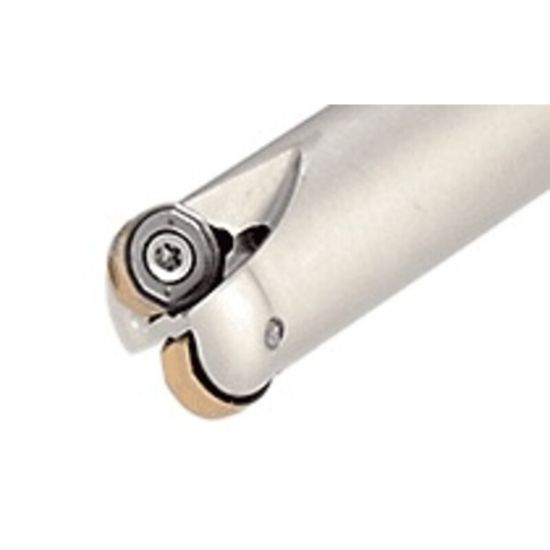

Picture of ISCAR H400 ERD1.00-3-2.5W100-10 Milling Cutter Button Cutter 1.000 Diameter Weldon 1.000 5.000 OAL 3 Flute

ISCAR H400 ERD1.00-3-2.5W100-10 Milling Cutter Button Cutter 1.000 Diameter Weldon 1.000 5.000 OAL 3 Flute

ANSI: H400 ERD1.00-3-2.5W100-10

ISO: H400 ERD1.00-3-2.5W100-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106161
Delivery date: 3-5 days
$382.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Round Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Cut Dia Min 0.5300 13.46MM
Tool Material Steel
Depth Of Cut Max 0.2950
Insert Size Ic 10
Flutes/Inserts 3
Cutter Dia 1.0000 25.40MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Max Ramp Angle 5.80°
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Style RN
Fasteners & Connectors
Insert Screw 7006042
