  • ISCAR H400 ER D40-5-M16-12 Milling Cutter Button Cutter 1.575 Diameter Screw On M16 2.362 OAL 5 Flute

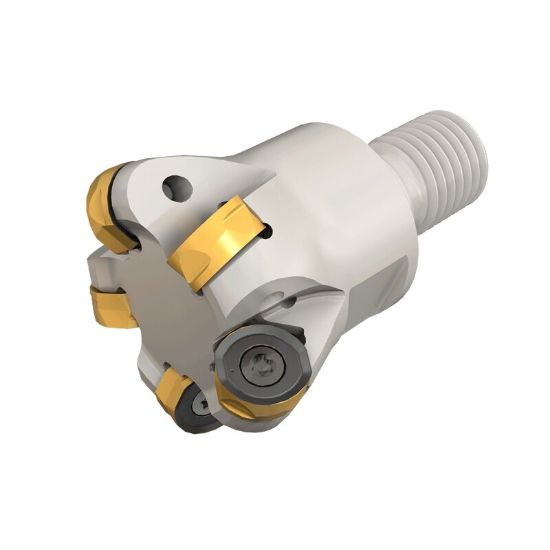

Picture of ISCAR H400 ER D40-5-M16-12 Milling Cutter Button Cutter 1.575 Diameter Screw On M16 2.362 OAL 5 Flute

ISCAR H400 ER D40-5-M16-12 Milling Cutter Button Cutter 1.575 Diameter Screw On M16 2.362 OAL 5 Flute

ANSI: H400 ER D40-5-M16-12

ISO: H400 ER D40-5-M16-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106269
Delivery date: 3-5 days
$564.48

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.4920
Cut Dia Min 1.1020 27.99MM
Overall Len 2.3620 59.99MM
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Flutes/Inserts 5
Machine Side Connection Type Screw On
Insert Size Ic 12
Cut Dia Max 1.5750 40.01MM
Machine Side Connection Size M16
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Max Ramp Angle 3.70°
Insert Style RN
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000000
