  • ISCAR H400 ER D32-5-M16-10 Milling Cutter Button Cutter 1.260 Diameter Screw On M16 2.362 OAL 5 Flute

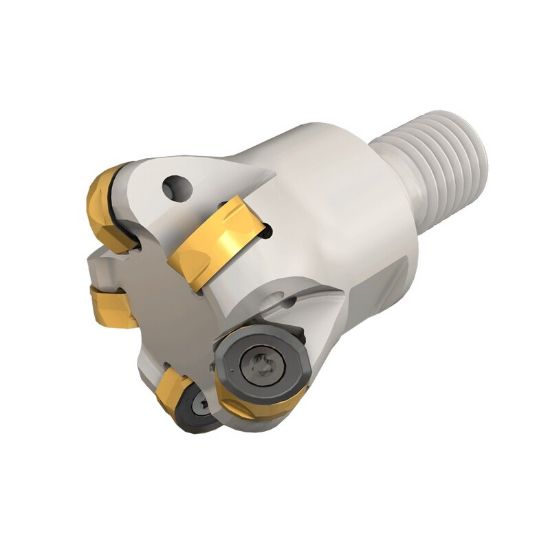

Picture of ISCAR H400 ER D32-5-M16-10 Milling Cutter Button Cutter 1.260 Diameter Screw On M16 2.362 OAL 5 Flute

ISCAR H400 ER D32-5-M16-10 Milling Cutter Button Cutter 1.260 Diameter Screw On M16 2.362 OAL 5 Flute

ANSI: H400 ER D32-5-M16-10

ISO: H400 ER D32-5-M16-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106000
Delivery date: 3-5 days
$478.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Face Milling, Round Milling, Pocket Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Cutter Dia 1.2600 32.00MM
Cut Dia Min 0.8660 22.00MM
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Insert Size Ic 10
Overall Len 2.3620 59.99MM
Depth Of Cut Max 0.1380
Cut Dia Max 1.2600 32.00MM
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Insert Style RN
Cool Sply Type Through Hole
Coolant Thru Yes
Max Ramp Angle 3.80°
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7000229
