  • ISCAR H400 ER D25-3-M12-10 Milling Cutter Button Cutter 0.984 Diameter Screw On M12 1.969 OAL 3 Flute

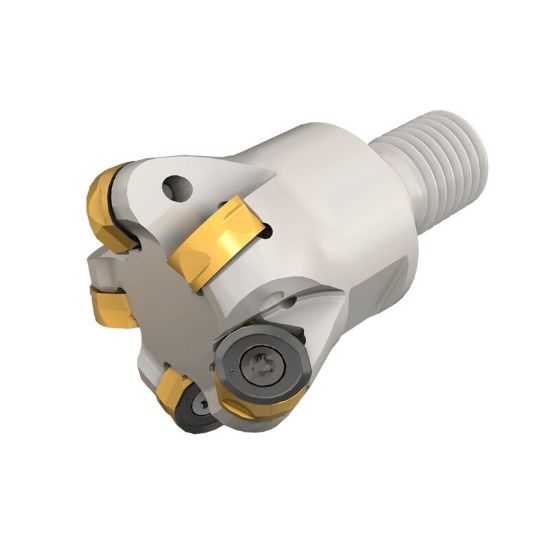

Picture of ISCAR H400 ER D25-3-M12-10 Milling Cutter Button Cutter 0.984 Diameter Screw On M12 1.969 OAL 3 Flute

ISCAR H400 ER D25-3-M12-10 Milling Cutter Button Cutter 0.984 Diameter Screw On M12 1.969 OAL 3 Flute

ANSI: H400 ER D25-3-M12-10

ISO: H400 ER D25-3-M12-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105999
Delivery date: 3-5 days
$382.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Package Size 1
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Cut Dia Min 0.5910 15.01MM
Cut Dia Max 0.9840 24.99MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Flutes/Inserts 3
Depth Of Cut Max 0.2950
Insert Size Ic 10
Tool Material Steel
Overall Len 1.9690 50.01MM
Cutter Dia 0.9840 24.99MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Max Ramp Angle 5.80°
Insert Style RN
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7001973
