  • ISCAR H400 ER D25-2-M12-12 Milling Cutter Button Cutter 0.984 Diameter Screw On M12 1.969 OAL 2 Flute

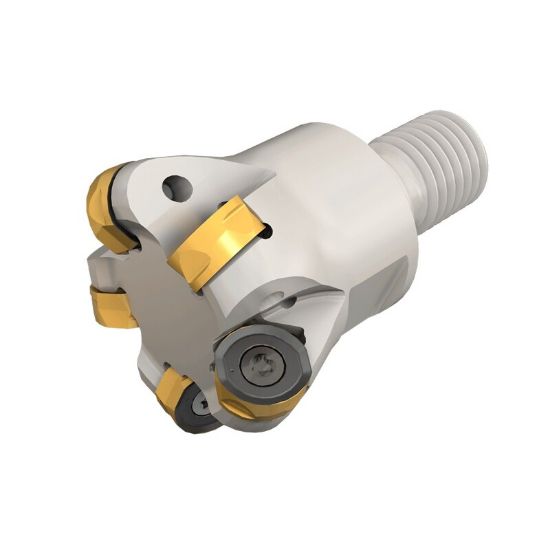

Picture of ISCAR H400 ER D25-2-M12-12 Milling Cutter Button Cutter 0.984 Diameter Screw On M12 1.969 OAL 2 Flute

ISCAR H400 ER D25-2-M12-12 Milling Cutter Button Cutter 0.984 Diameter Screw On M12 1.969 OAL 2 Flute

ANSI: H400 ER D25-2-M12-12

ISO: H400 ER D25-2-M12-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106113
Delivery date: 3-5 days
$354.24

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Face Milling, Ramp Milling, Round Milling
Made In USA No
Insert/Tool Tool
Package Size 1
Shipping State Texas
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Cut Dia Min 0.5120 13.00MM
Tool Material Steel
Overall Len 1.9690 50.01MM
Depth Of Cut Max 1.1200
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutter Dia 0.9840 24.99MM
Insert Size Ic 12
Cut Dia Max 0.9840 24.99MM
Flutes/Inserts 2
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Max Ramp Angle 5.60°
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7005890
