  • ISCAR H400 ER D20-2-M10-10 Milling Cutter Button Cutter 0.787 Diameter Screw On M10 1.772 OAL 2 Flute

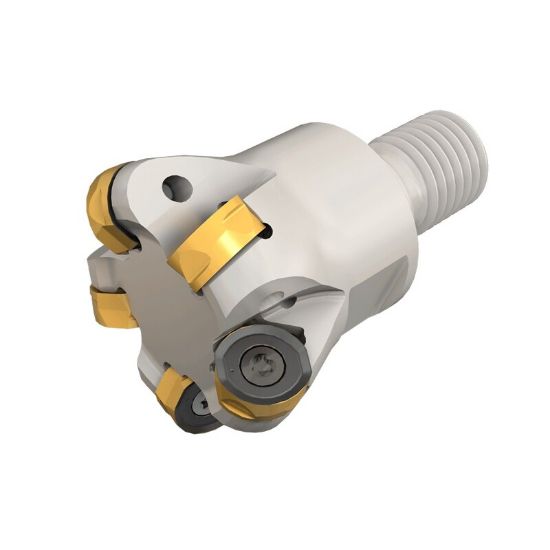

Picture of ISCAR H400 ER D20-2-M10-10 Milling Cutter Button Cutter 0.787 Diameter Screw On M10 1.772 OAL 2 Flute

ISCAR H400 ER D20-2-M10-10 Milling Cutter Button Cutter 0.787 Diameter Screw On M10 1.772 OAL 2 Flute

ANSI: H400 ER D20-2-M10-10

ISO: H400 ER D20-2-M10-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105998
Delivery date: 3-5 days
$326.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 10
Cut Dia Max 0.7870 19.99MM
Cutter Dia 0.7870 19.99MM
Cut Dia Min 0.3940 10.01MM
Overall Len 1.7720 45.01MM
Flutes/Inserts 2
Machine Side Connection Size M10
Machine Side Connection Type Screw On
Depth Of Cut Max 0.2950
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Cool Sply Type Through Hole
Insert Style RN
Fasteners & Connectors
Insert Screw 7001973
