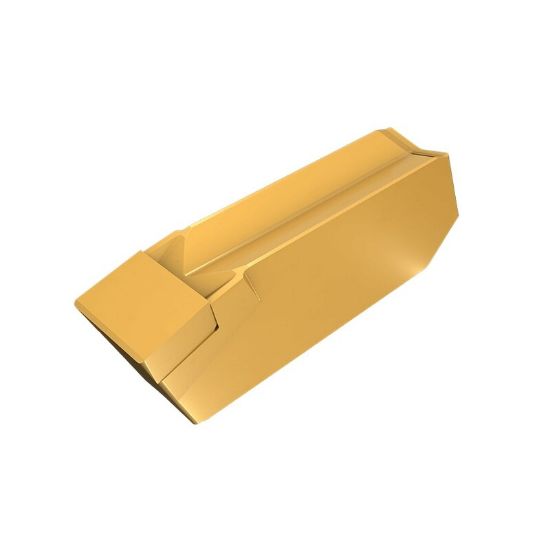

Picture of ISCAR GITM 4.00K-0.20 IB20H Grooving,Groove Turning Insert 0.008 Corner Radius 0.157 Wide

ISCAR GITM 4.00K-0.20 IB20H Grooving,Groove Turning Insert 0.008 Corner Radius 0.157 Wide

ANSI: GITM 4.00K-0.20 IB20H

ISO: GITM 4.00K-0.20 IB20H

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6404168
Delivery date: 3-5 days
$133.79

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

CBN Tipped Inserts for Turning and Grooving on Hard Ferrous Materials

File Downloads

DXFSTPSTPL

Grade and Coating Description

A combination of coarse and fine grain PCBN, used for general and interrupted cutting of hardened steel.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Insert Type Positive
Grade IB20H
Insert/Tool Insert
Application Grooving & Parting Insert
Shipping State Texas
Package Size 10
Dimensional Specifications
Face Groove Min Dia 6.3000
Insert Size Ic 4
Cutting Width 0.1570 3.99MM
Corner Radius 0.0080 0.20MM
Cut Rating <65HRC Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI
Cutting Edge Mat CBN
