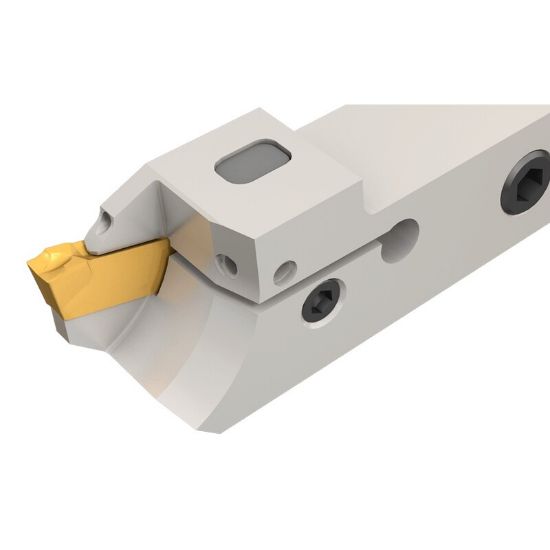

Picture of ISCAR GHSR 16-3-JHP-SL Cut Off,Grooving,Groove Turning,Polley V Grooving Stick Tool 0.629 Tool

ISCAR GHSR 16-3-JHP-SL Cut Off,Grooving,Groove Turning,Polley V Grooving Stick Tool 0.629 Tool

ANSI: GHSR 16-3-JHP-SL

ISO: GHSR 16-3-JHP-SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801934
Delivery date: 3-5 days
$362.88

Details

Grooving and turning tools with side lock mechanism and channels for high pressure coolant. The tools were designed for Swiss-type and automatic machines.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting, Ext.Groove Turning
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Shipping State Texas
Dimensional Specifications
Insert Size Ic 4, 3
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7240 119.99MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting Width 0.1100 2.79MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
Inter/Extern External
