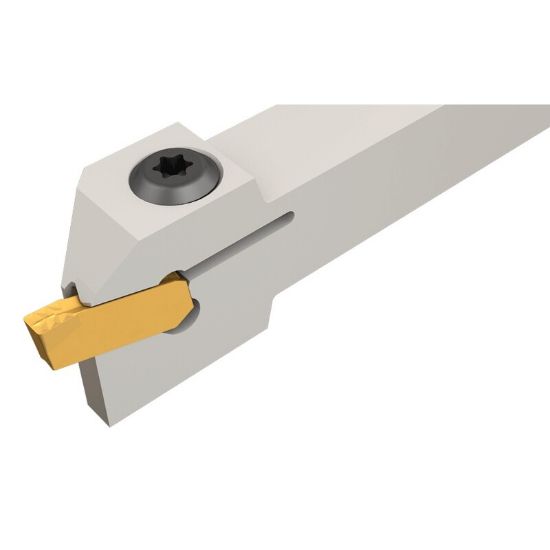

Picture of ISCAR GHMR 16-3 ST Grooving, Face Grooving,Polley V Grooving Stick Tool 0.629 Tool

ISCAR GHMR 16-3 ST Grooving, Face Grooving,Polley V Grooving Stick Tool 0.629 Tool

ANSI: GHMR 16-3 ST

ISO: GHMR 16-3 ST

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800444
Delivery date: 3-5 days
$150.72

Details

CUT-GRIP toolholders for shallow radial and axial grooving. Light turning, small depth of cut (ap=.004-.020"), and small feed (f=.004 ipr).

For insert clamping instructions, click on "More Info". To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Pulley Groove, Ext.Grooving
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 3, 2, 4
Depth Of Cut Max 0.1890
Overall Len 3.0710 78.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GI,GP,GI,TI
Inter/Extern External
