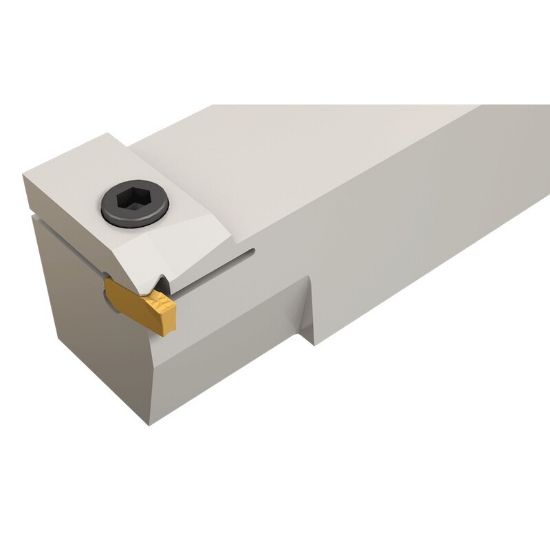

Picture of ISCAR GHMPR 31.7 Grooving, Face Grooving,Polley V Grooving Stick Tool 1.250 Tool

ISCAR GHMPR 31.7 Grooving, Face Grooving,Polley V Grooving Stick Tool 1.250 Tool

ANSI: GHMPR 31.7

ISO: GHMPR 31.7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800438
Delivery date: 3-5 days
$200.64

Details

CUT-GRIP perpendicular toolholders for shallow radial and axial grooving. Light turning, small depth of cut (ap=.004-.020"), and small feed (f=.004 ipr).

For insert clamping instructions, click on "More Info". To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Application Ext.Grooving, Pulley Groove
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Overall Len 7.0000 177.80MM
Insert Size Ic 3, 2, 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.1890
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GI,GP,GI,TI
